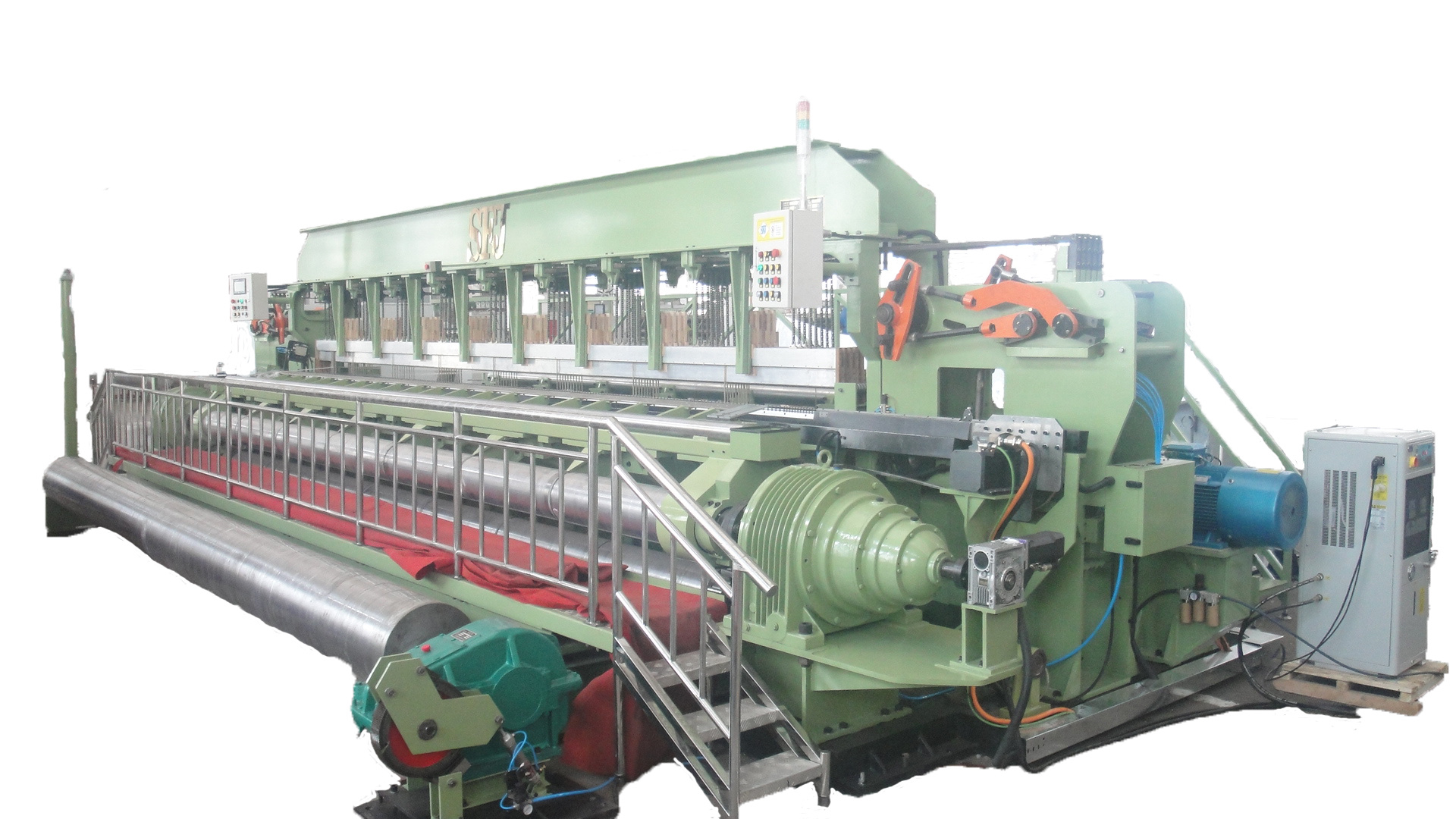

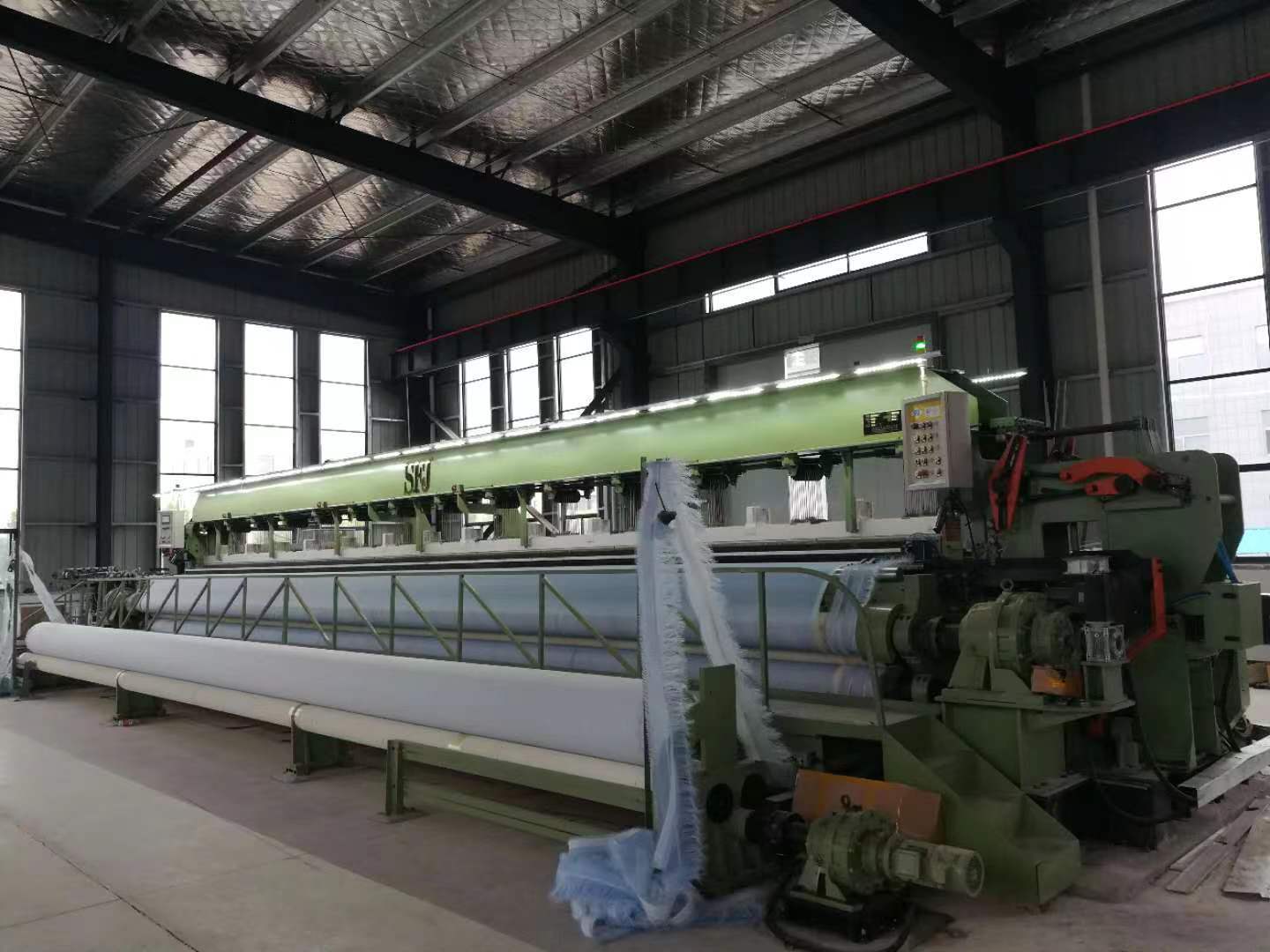

CXWJ Forming Mesh Rapier Loom
CXWJ Forming Mesh Rapier Loom

Product Introduction
CXWJ forming net rapier loom, mainly used for weaving papermaking polyester single-layer, multi-layer forming net.
Main technical parameters
1. Polyester monofilament scope: 0.1-0.8mm.
2. Weft density range: 100-1200 weft/10cm.
3. Reed width: 5500mm-12800mm.
4. Economic speed: 40 r/min minutes.
5. The total power: 20KW-40KW.
Main structure
1. Frame: The main wall panel adopts cast iron box structure, and the whole machine is installed on the overall base.
2. Main drive: two-sided new reluctance motor coaxial drive.
3. Opening mechanism: opening of double-sided pull arm structure, 20 pieces of heald frame.
4. Weft insertion mechanism: servo motor double rapier weft insertion, six-color weft selection.
5. Beating-up mechanism: multi-section split combined crank four-link beating-up.
6. Coiling mechanism: servo-driven three-roller positive curling.
7. Send-off mechanism: servo-driven double-beam active send-off.
8. Roll net mechanism: independent torque motor drive machine outer surface roll net.
9. Lubrication system: the combination of centralized automatic lubrication and manual oil lubrication.
10. Control system: The whole machine adopts PLC programmable automatic control system, which can freely set various parameters of the loom, and the fault stops and automatically displays.
